OD-30DXC
32”H x 28”W x 30”D (15 RU)
The OD-30DXC enclosure, providing a secure, climate controlled environment for any electronic equipment. Designed to withstand dynamic environments and harsh weather conditions. Built with Alumiflex®, you’ll find it noticeably lighter than steel, yet strong enough to rack even the heaviest equipment.
All OD series enclosures include these standard features; R-strut system for adjustable racking. Security of the 3 point locking system, Alumishield® solar cap to manage heat loads. Accessories available for enhanced functionality include HVAC, electrical load panels, trays, bases and cable entry solutions.
DDB indoor and outdoor enclosures are American Made and offer State of The Art Designs.
Features & Specifications
Application Types
- Telecommunications
- Wireless/Broadband
- Fiber Optics
- Backhaul
- Base Station
- Small Cell/DAS
- Utility
- Military
- Trailer-based Communications
- Wi-Fi
- LTEE/4G/5G
Industry Standards
- NEMA 3R as shown
- NEMA 4 and 4X configurable (unlisted to environmental rating)
- OD Series Listed to UL 50/50E Type 4 Available
- ETL listed to UL Standard 60950-1/CSA 22.2C
Features
- 0.125" Aluminum Construction
- Stainless Steel External Hardware/Hinge

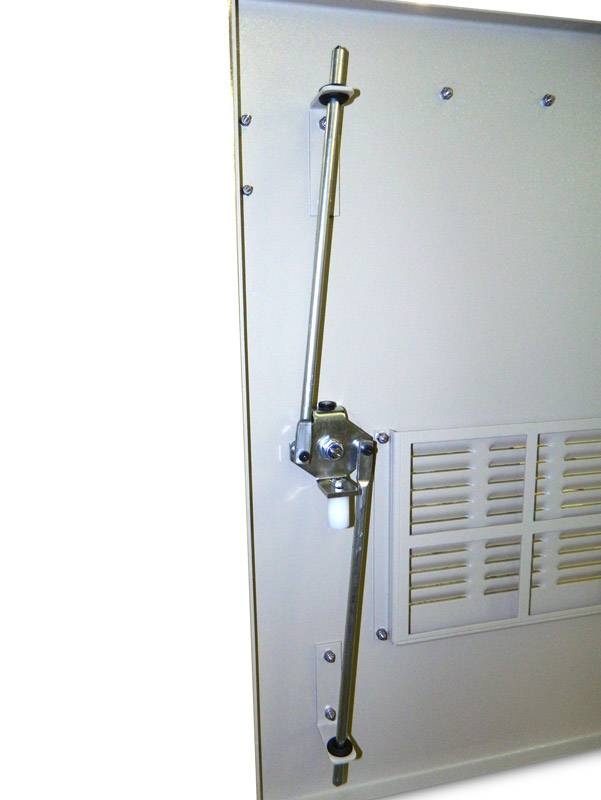

- 3 Point Lock System
- Heavy Duty Out-Door Construction
- Front and Rear Access
- Custom Colors Available
- Cream and Red Powder-Coat in Stock
- Flexible and Scalable
- 15 Year Warranty
- Quick Shipping
Downloads
- OD-30DXC Specs Sheet (PDF)
- Owner’s Manual (PDF)
- Size Comparison Chart (PDF)
- Wind Load Study (PDF)
- DDB Alumishield® Data (PDF)
- DDB Fan Kit Installation Instructions (PDF)
- Mounting Locations (PDF)
- Seismic & Loading Analysis (PDF)
Base Cabinet Weight and Dimensions
Exterior Cabinet Dimensions:
32”H x 28”W x 30”D
Inside Usable Depth:
19.675"
Approximate Shipping Weight:
126 lbs
Shipping Dimensions:
32"W x 42"L - Palletized
Gallery
